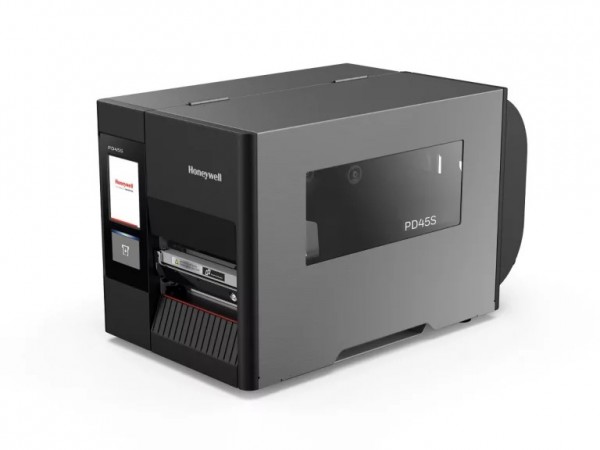

PD45
페이지 정보
본문
Compatible Drivers
- CUPS Driver for Linux
- Certified Device Types for SAP
- InterDriver Windows
Resolutions
- 203 dpi
- 300 dpi
Print Speeds
- 50-250mm/s (2-10 ips)
Print Method
- Direct Thermal
- Thermal Transfer
Linear Barcodes
- All major 1D barcodes
Downloadable Font Type
- Bitmap Font
- OpenType Font (TrueType based)
- TrueType Font
Printer Media Type
- Label
Wireless Communication
- IEEE 802.11 a/b/g/n/ac
Printer Command Language
- C# Smart Printing
- DPL
- Direct Protocol (DP)
- Fingerprint (FP)
- Intermec Printer Language (IPL)
- XML-enabled for SAP AII and Oracle WMS
- ZSim2 (ZPL-II)
RAM Memory
- 256 MB
Memory
- External Multi-GB USB memory device (FAT16/FAT32)
Image File Format
- BMP
- GIF
- PCX
- PNG
Flash Memory
- 256 MB
Printer Connection Interface
- RS-232, up to 115.2 KB/s
Operating Frequency
- 50 - 60 Hz
Platform
- Honeywell Printer Edge
Network Specifications
- Ethernet 10/100 Mbps
Font Engine
- Monotype Font Engine
- WTLE for Global Language Support
Dimensions & Weight
Overall Dimensions
- L x H x W: 438 mm x 270 mm x 249 mm (17.24 in x 10.63 in x 9.80 in)
Maximum Ribbon Length
- 450 m (1476 ft)
Maximum Media Roll Diameter
- 203.2 mm (8.0 in)
Electrical Specifications
Operating Voltage
- 100V AC to 240V AC
Operating Characteristics
Operating Temperature
- +5°C to +40°C (+41°F to +104°F)
Operating Humidity
- 20 - 85 % non-condensing
Storage Temperature
- -20°C to +70°C (-4°F to +152°F)
Storage Humidity
- 20 - 80 % non-condensing
Overview
Warranty Duration
- One year factory warranty
Others
Print Width
- 4 inch
Print Volume
- Up to 10,000
Print Technology
- Thermal Transfer
Print Resolution
- 203 dpi
- 300 dpi
Connectivity
- Direct to PC
- Ethernet
