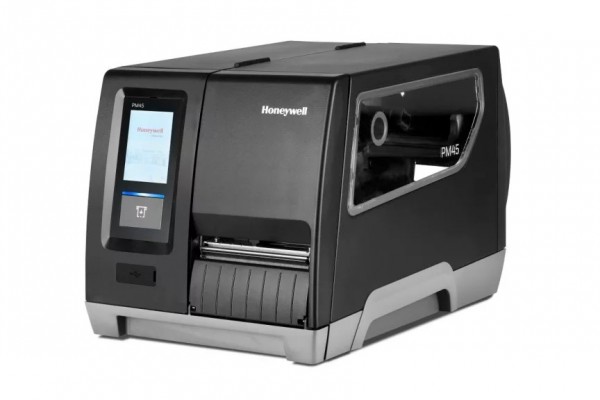

PM45
페이지 정보
본문
Technical Specifications
Compatible Drivers
- CUPS Driver for Linux
- Certified Device Types for SAP
- InterDriver Windows
Downloadable Font Type
- Bitmap Font
- OpenType Font (TrueType based)
- TrueType Font
Linear Barcodes
- All major 1D barcodes
Print Speeds
- 50-350mm/s (2-14 ips)
Print Method
- Direct Thermal
- Thermal Transfer
Resolutions
- 203 dpi
- 300 dpi
- 406 dpi
- 600 dpi
Printer Media Type
- Label
- Linered
- RFID
- Tag
Wireless Communication
- IEEE 802.11 a/b/g/n/ac
- TLS, PEAP, TTLS, PWD, LEAP, FAST
- WWAN Radio
- Wi-Fi Certified
Printer Command Language
- C# Smart Printing
- DPL
- Direct Protocol (DP)
- Fingerprint (FP)
- Intermec Printer Language (IPL)
- XML-enabled for SAP AII and Oracle WMS
- ZSim2 (ZPL-II)
Memory
- External Multi-GB USB memory device (FAT16/FAT32)
Image File Format
- BMP
- GIF
- PCX
- PNG
Flash Memory
- 512 MB
RAM Memory
- 256 MB
Printer Connection Interface
- Applicator Interface
- Industrial interface
- Parallel Interface (IEEE 1284)
- RFID
- RS-232
- USB 2.0 Host (x2 PM45, x1 PM45C)
Operating Frequency
- 50 - 60 Hz
Bluetooth Specifications
- Bluetooth Classic 5.0
Network Specifications
- Ethernet 10/100 Mbps
RFID Specifications
- RFID
Font Engine
- Monotype Font Engine
- WTLE for Global Language Support
Platform
- Honeywell Printer Edge
Features
Features
- Accurate & reliable high speed printing
- Broad connectivity options
2D Barcodes
- All major 2D barcodes
Dimensions & Weight
Overall Dimensions
- PM45: L x H x W: 483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)
- PM45c with Mega Door: L x H x W: 500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)
- PM45c: L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)
Maximum Ribbon Length
- 450 m (1476 ft)
Maximum Media Roll Diameter
- 213 mm (8.38 in)
Weight
- PM45: 13.2 kg (29.1lbs)
Electrical Specifications
Operating Voltage
- AC Voltage: 100 to 240V AC, 50 to 60 Hz
Operating Characteristics
Operating Temperature
- +41°F to +104°F
- +5°C to +40°C
Operating Humidity
- 20 - 85 % non-condensing
Storage Temperature
- -20°C to +70°C (-4°F to +152°F)
Storage Humidity
- 5 - 90 % non-condensing
Overview
Warranty Duration
- One year factory warranty
Others
Print Technology
- Direct Thermal
- Thermal Transfer
Print Resolution
- 203 dpi
- 300 dpi
- 406 dpi
- 600 dpi
Print Volume
- Up to 10,000
- Up to 5,000
첨부파일
-
pm45-pm54c-industrial-printer-datasheet-ko-kr.pdf (248.5K)
0회 다운로드 | DATE : 2025-04-07 14:21:20
