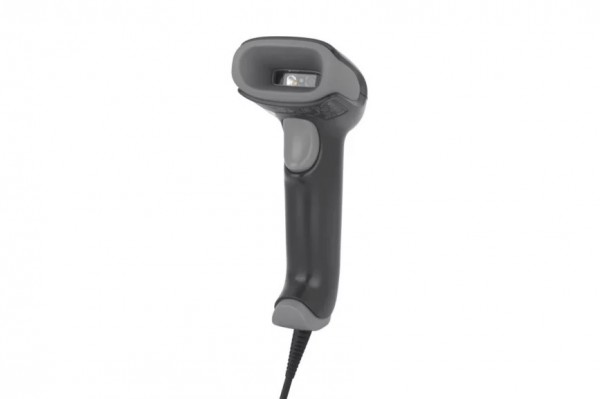

Voyager XP 1470g
페이지 정보
본문
Dimensions
Overall Dimensions
- 2.4 x 6.6 x 3.2 in
- 6.2 x 16.9 x 8.2 cm
Scanning Specifications
Skew
- 70
Decode Capability
- 1D/2D
Motion Tolerance
- 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Scanning Range
- Standard range (SR)
Depth of Field
- 0.2 - 15.8 in
Scan Pattern
- Area Image
Brightness
- 0 - 100000 lux
Pitch
- 65
Network
Bluetooth Specifications
- N/A
Bluetooth
- No
Hardware
Host System Interface
- KBW
- RS-232
- RS-485
- USB
Engine Type
- 2D
Aimer Type
- LED
Wireless
- No
Electrical
Standby Power
- 0.45
Environmental
Storage Temperature Range
- - 40 - 140 °F
- - 40 - 60 °C
Operating Humidity
- 0 - 95 %
Standards & Approvals
Tumble Specifications
- 1,000 0.5 m (1.6 ft) tumbles
Drop Specifications
- 30 1.8 m (6 ft) drops to concrete
Protection Ratings
- IP52
Others
Form Factor
- Gun Shape
Application
- Point of Sale
- Retail
Operating Power
- 2 W
Input Voltage
- 4 - 5.5 V DC
Operating Temperature
- 0 - 50 °C
- 32 - 122 °F
Warranty Duration
- 5 yr
Brand
- Honeywell
Power Connector Type
- Corded
Scan Distance
- Standard Range (0-1m)
Connectivity
- Corded
IP Rating
- IP52
첨부파일
-
voyager-xp-1470g-general-duty-scanner-data-sheet-kr.pdf (157.1K)
0회 다운로드 | DATE : 2025-04-07 14:51:55
