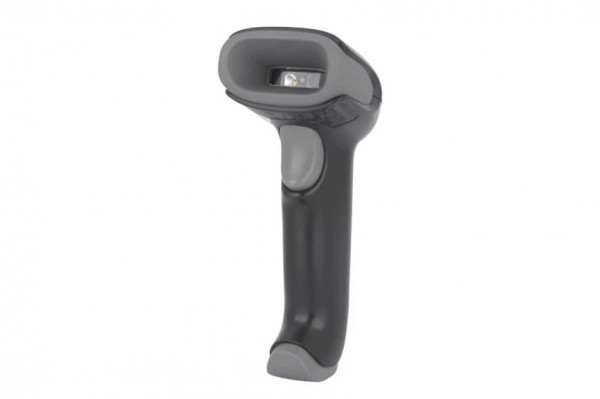

Voyager XP 1472g
페이지 정보
본문
Dimensions
Overall Dimensions
- 2.4 x 6.8 x 3.2 in
- 6.2 x 17.3 x 8.2 cm
Scanning Specifications
Skew
- 70
Scanning Range
- Standard range (SR)
Scan Pattern
- Area Image
Pitch
- 65
Number of Scans
- 50000
Motion Tolerance
- 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Depth of Field
- 0.2 - 15.8 in
Decode Capability
- 1D/2D
Brightness
- 0 - 100000 lux
Network
Bluetooth Specifications
- v4.2
Bluetooth
- Yes
Hardware
Aimer Type
- LED
Wireless
- Yes
Host System Interface
- KBW
- RS-232
- RS-485
- USB
Environmental
Storage Temperature Range
- - 20 - 35 °C
- - 4 - 95 °F
Operating Humidity
- 0 - 95 %
Standards & Approvals
Tumble Specifications
- 1,000 0.5 m (1.6 ft) tumbles
Protection Ratings
- IP52
Drop Specifications
- 30 1.8 m (6 ft) drops to concrete
Others
Form Factor
- Gun Shape
Application
- Point of Sale
- Retail
Battery Type
- Li-ion Battery
Operating Temperature
- 41 - 104 °F
- 5 - 40 °C
Warranty Duration
- 3 yr
Brand
- Honeywell
Scan Distance
- Standard Range (0-1m)
Power Connector Type
- Cordless
IP Rating
- IP52
Connectivity
- Bluetooth
Charging
- Contact Charging
