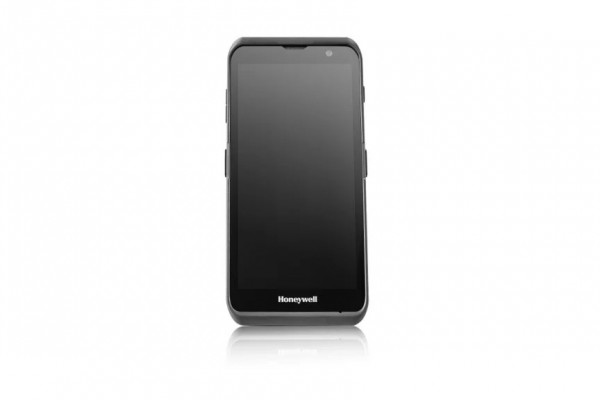

EDA5S (LTE)
페이지 정보
본문
Dimensions
Overall Dimensions
- 159mm x 75 mm x 11.2mm (6.26 in x 2.95 in x 0.44 in)
Scanning Specifications
Decode Capability
- Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
Network
Computer Wireless Communication
- WLAN; WWAN; Bluethooth; NFC; GPS
Bluetooth Specifications
- Bluetooth Class 5.1
WWAN Specifications
- FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9, 12, 13, 17, 19, 20, 25, 26, 28, 30, 66
- GSM/EDGE: Bands 2, 3, 5, 8
- TDD-LTE: Bands 38, 39, 40, 41
- UMTS/HSPA+: Bands 1, 2, 4, 5, 6, 8, 9, 19
WLAN Specifications
- Additional WLAN Features: 802.11 d/e/h/i/k/ r/u/w /v , 1X1 MU-MIMO
- WLAN (Wi-Fi Alliance certified):NEWLINEIEEE 802.11 a/b/g/n/ac
- WLAN Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)
- WLAN Supported EAP:NEWLINETLS, PEAP, TTLS, PWD, LEAP
GPS Specifications
- Simultaneous receiver support for GPS, GLONASS, and BeiDou (WWAN Only)
Software & Firmware
Operating System
- Android 11, and upgradeable to Android 13 (Android 13 is pending for the confirmation from Qual comm & Google).
Operating System Type
- Android
Platform
- ScanPal
Memory & Data
Memory
- 3 GB RAM/32 GB Flash; 4 GB RAM/64 GB Flash
Hardware
Display Resolution
- 1440 x 720 High Definition
Scan Engine Range
- 1D/2D
Scan Engine Model
- S0703
Scan Engine Type
- Imager
Display Size
- 5.5-inch
Processor
- Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz
Scan Range
- FlexRange FR
Keyboard
- Touchscreen
Network
- WLAN/WWAN
Electrical
Battery Capacity
- 3060mAh
Battery Types
- Only for EDA5S
Battery Type
- Li-Ion, 3.8 V, 3,060 mAh, removable
Environmental
Storage Temperature Range
- -20°C to +70°C (-22°F to 158°F)
Operating Temperature
- -10°C to +50°C (-4°F to +122°F)
Operating Humidity
- 5% to 90% (non-condensing)
Cold Storage
- -20°C to +70°C (-22°F to 158°F)
Standards & Approvals
Tumble Specifications
- 300 times at 0.5 m (1.64 ft)
Drop Specifications
- Multiple 1.2m (4ft) drop to concrete per MIL-STD 810G under room temperature
Protection Ratings
- IP67
Service Terms
Warranty Duration
- One-year factory warranty
ERP
Brand
- Honeywell
Others
Scan Distance
- No Scanner
- Standard Range (0-1m)
Connectivity
- Wi-Fi
- Wi-Fi & Cellular
Environment
- Standard
Durability
- 1.2m (4ft)
Keypad
- Full Touchscreen
첨부파일
-
scanpal-eda5s-data-sheet-en.pdf (195.7K)
0회 다운로드 | DATE : 2025-04-07 14:46:23
